Configure network settings

Change IP settings

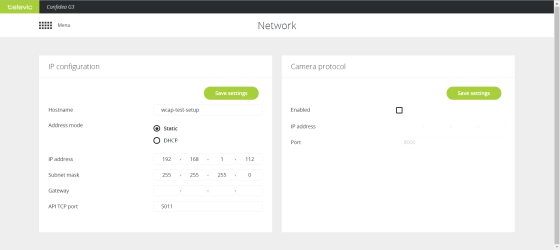

  1. Click the Menu button and click the Network menu item. You can configure the following settings:

    Parameter

    Description

    HostnameChange the hostname of the WCAP.
    Address mode

    Choose between static and DHCP mode:

    Static: in this mode the IP address and subnet mask are fixed and must be inserted into the appropriate fields.

    DHCP: DHCP (Dynamic Host Configuration Protocol) is a protocol used by the WCAP to automatically obtain the parameters necessary for operation in an IP network. This reduces system administration workload, allowing the WCAP to be added to the network with little or no manual configuration. There must be a DHCP server on the network that dynamically assigns IP addresses when using the DHCP setting

    IP addressEnter the fixed IP address of the WCAP. (Only available in static mode).
    Subnet maskDefine the subnet of the WCAP
    GatewayIs the access point to another network.
    API TCP port

  2. Click Save settings.
