Component range

As discussed earlier, you can include different components in your CoCon network. These components can be divided into four different categories:

• Central equipment: the heart of the CoCon network, with these devices you can set up, configure and maintain the CoCon network.
• Network equipment
• Multimedia: these devices support the usage of multimedia during the meeting such as viewing video on delegate units or video injection / extraction from the CoCon network.
• Audio: these units only support receiving and sending audio.
• Interpreter equipment: all equipment needed for interpretation.

Central equipment

The table below shows all central equipment of the CoCon architecture.

	Product	Product number
	CoCon AE-R	71.98.2902
	CoCon MME	71.98.2900
	CoCon NEXT	71.98.2911
	CoCon Power Supply	71.67.5621
	Dante Networking™ Card	71.98.2950

Audio only

The table below shows all audio-only equipment that you can combine with the central equipment in the CoCon network.

	Product	Product number

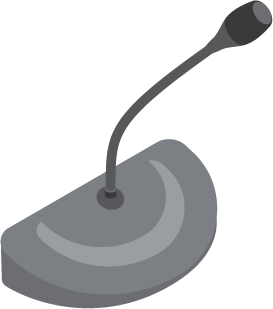

	Confidea Tabletop (T)	71.98.0105 – 71.98.0118

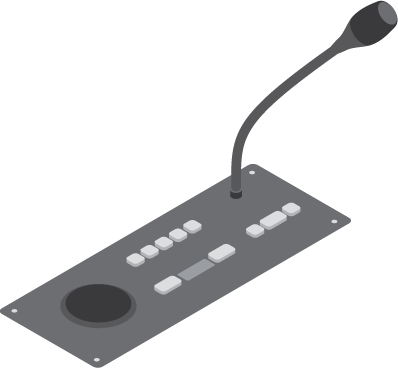

	Confidea Flushmount (F)	71.98.0501 – 71.98.0514
	Confidea F Channel Selector (CS)	71.98.0551
	Confidea F-DIV-C	98.51.0903

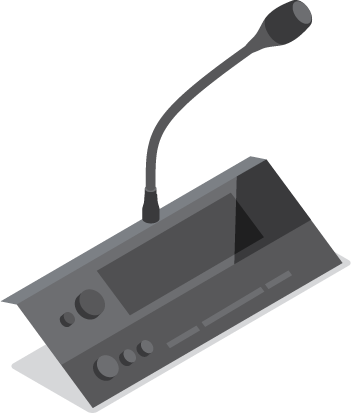

	Lingua Interpreter Desk	71.98.2100

Multimedia

The table below shows all multimedia equipment that you can combine with the central equipment in the CoCon network.

	Product	Product number
	uniCOS F-MM7	71.98.2002

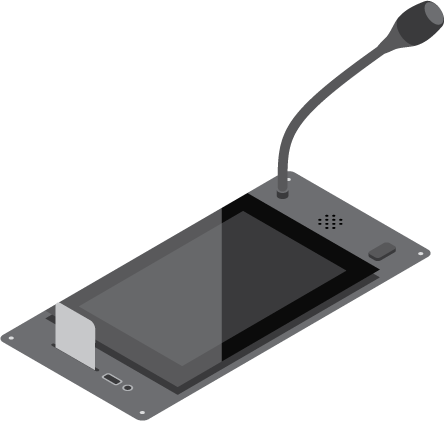

	uniCOS F-MM10	71.98.2001
	uniCOS T-MM10	71.98.2003

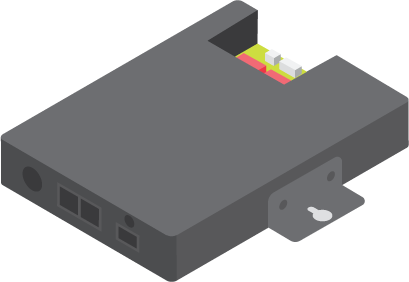

	uniBOX	71.98.2004

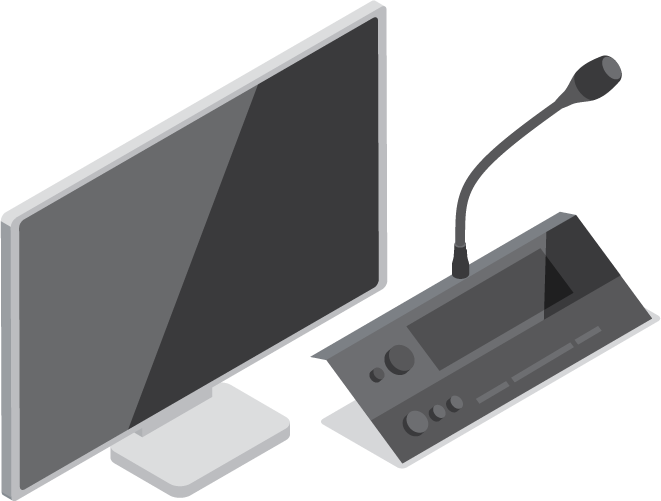

	Lingua Interpreter Desk (Multimedia (MM)	71.98.2101
	Video In Box	71.98.2920
	Video Out Box	71.98.2922

Other

The table below shows other devices that can be used in the CoCon network.

	Product	Product number
	Plixus Nameplate	71.98.2050
