Video-IN

Video-In box

Through the CoCon Video-IN (V-IN) box you can insert a HDMI video stream anywhere in the CoCon network. There are two modes available for the V-IN box:

You can use multiple V-IN boxes in a CoCon network. Group V-IN boxes in order to create a presentation stream based on a push to show principle (using the Video-Request button or dry contacts). A total of six streams can be active in the CoCon network at any given time.

Figure 1-13 Video-IN box

  1. Insert HDMI video stream
  2. Two CoCon conference ports
  3. Dry contacts for video stream input request
  4. USB connection to V-REQ
The USB connection for the V-REQ is not a standard USB connection. This connection only works for the V-REQ.



The V-IN box supports the following formats:

Video request

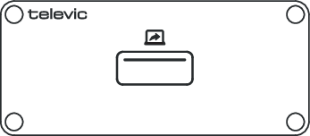

The video stream input request can be done via dry contacts or by using the CoCon V-REQ (video input request button), see image below.

Connection of V-REQ to the Video In Box is done through the included micro USB cable.

Figure 1-14 Video-Request button
