Getting started with CoCon Core

Access CoCon Core

To access the web server of the CoCon system, enter the IP address of the CoCon engine in your browser. The default IP address of the CoCon engine is 192.168.0.100 with subnet mask 255.255.255.0.

Explore CoCon Core

The layout of the web server was designed to be intuitive and easy to use. All pages have a similar layout which eases configuration. The general layout consists out of two parts:

• The header element (1): this part contains the name of the product together with the title of the page. From here you can also access the main menu by clicking the menu icon .
• The body element (2): on this part of the page you can view and configure all settings. The content will change depending on the menu item you select.

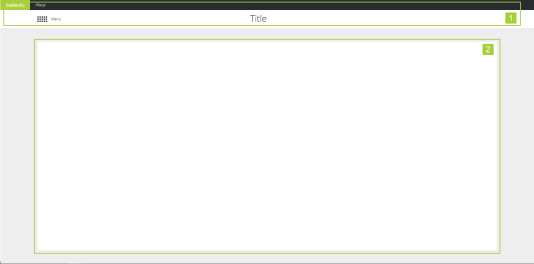

Figure 1-57 General layout of the web server

When you want to configure a certain setting, you simply select the correct sub menu from the main menu (). The following sub menus are available:

Icon	Sub menu	Description
	Home	Return to the home screen where you see the most important features and their configuration.
	Initialization	Define and configure units present in the CoCon network.
	Discussion options	Configure discussion options such as microphone to define how to activate a microphone.
	Audio	Configuration of different audio options such as dynamic processing and auto gain reduction.
	Audio routing	Configure the audio routing and the auxiliary input and output levels.
	Interpretation	Configuration of the interpretation channels.
	Operator	Control all microphones in a meeting.
	Recording	Options to record the meeting. (only available on CoCon AE-R)
	Regional settings	Change regional settings.
	Network	Configure network settings and set camera protocol.
	Users	Change user name and password.
	System info	Contains system information such as license information, system logging, (de)activation of Plixus Core and configuration management.
	Update versions	Overview of all firmware and software version together with the option to update to another version.
	Video application	Select the video configuration (only available on CoCon MME)
	Diagnostics	Tools to check the overall status of your system
